18 inch tall bracelet display tutorial

Christmas

This is one of my favorite jewelry display designs because of how much it can hold and how beautiful it looks while doing it.

table saw

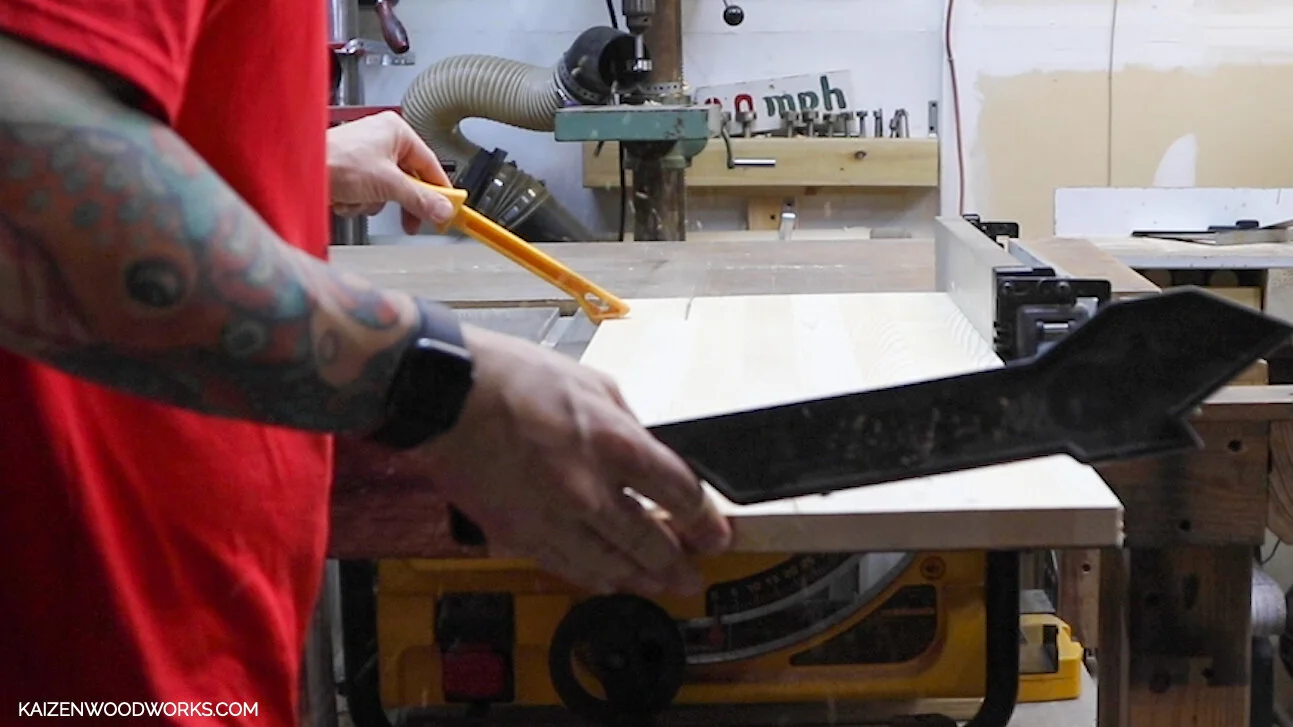

I start off with 1” x 12” x 36'“ piece of edge glued pine and cut the whole piece down to 9” wide with the table saw.

Screen Shot 2021-05-22 at 9.06.13 AM.jpg

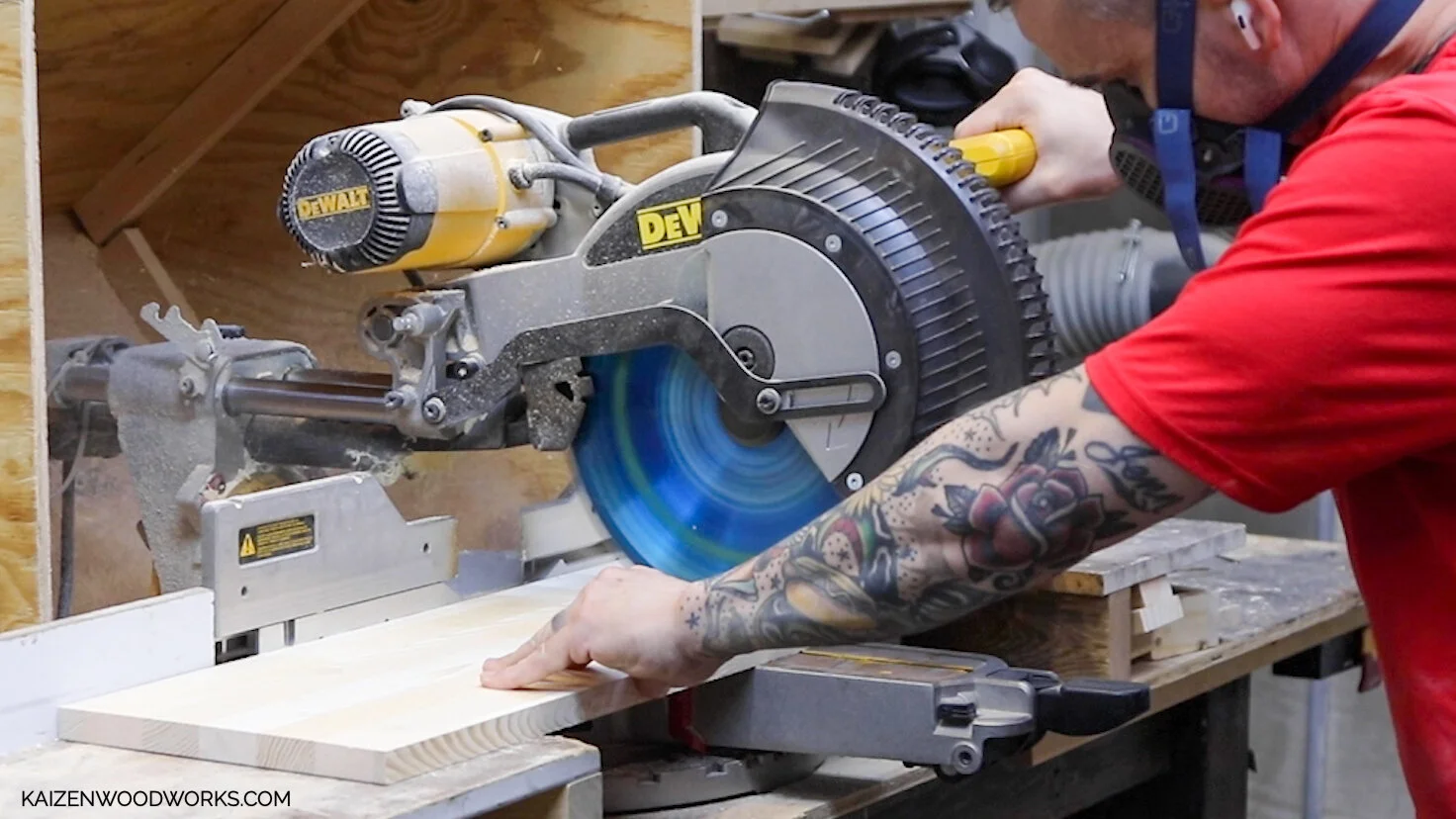

From that cut a 17” piece and a 9” piece.

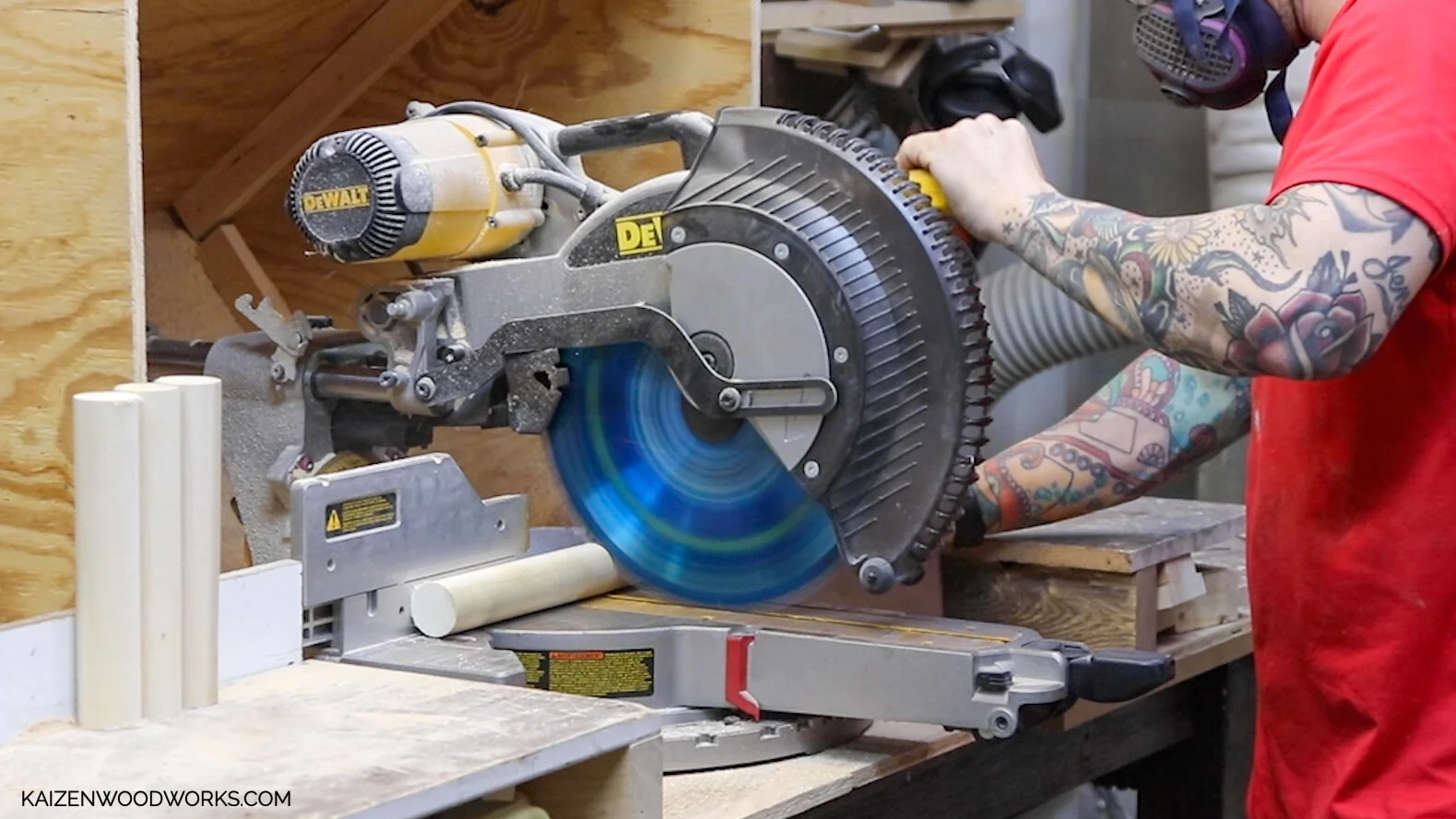

dowel cuts

Cut the 1.5” poplar dowel into four 8” pieces, and the 3/4” dowel into four 4 inch pieces.

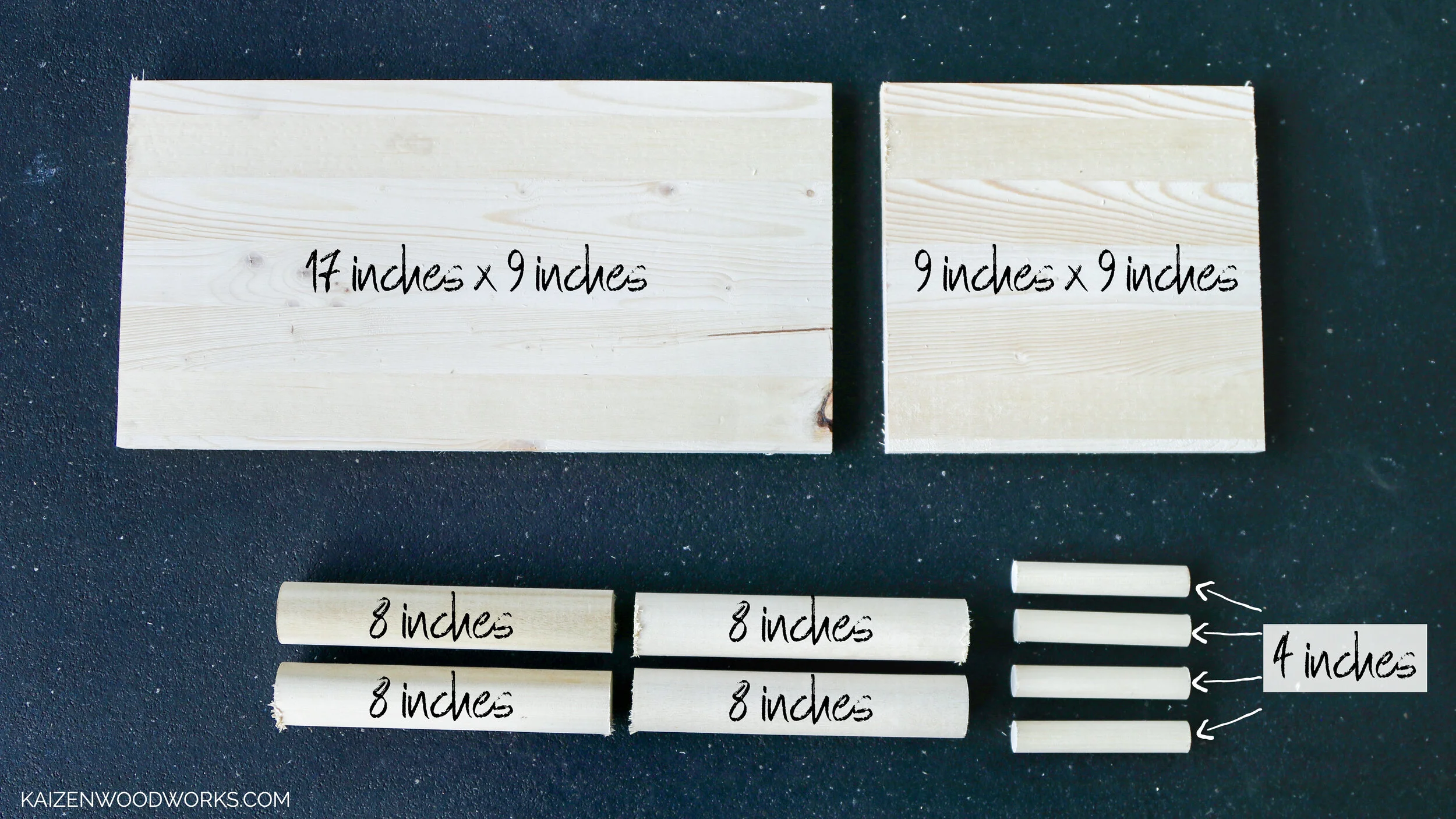

cuts

Your cut pieces should look like this.

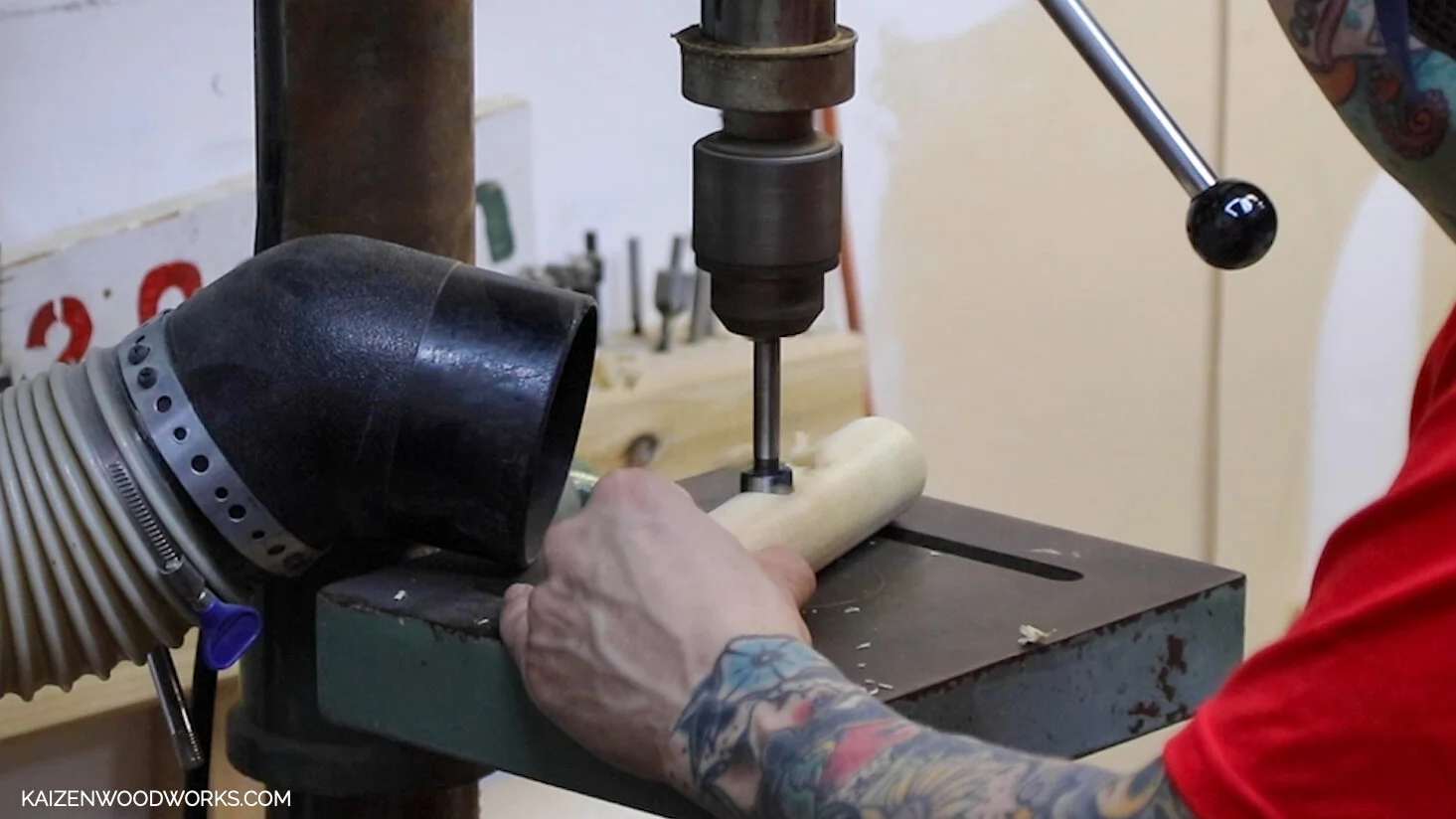

dowel holes

I use a 3/4” forstner bit to drill holes into the center of the 1.5” dowel pieces.

drill

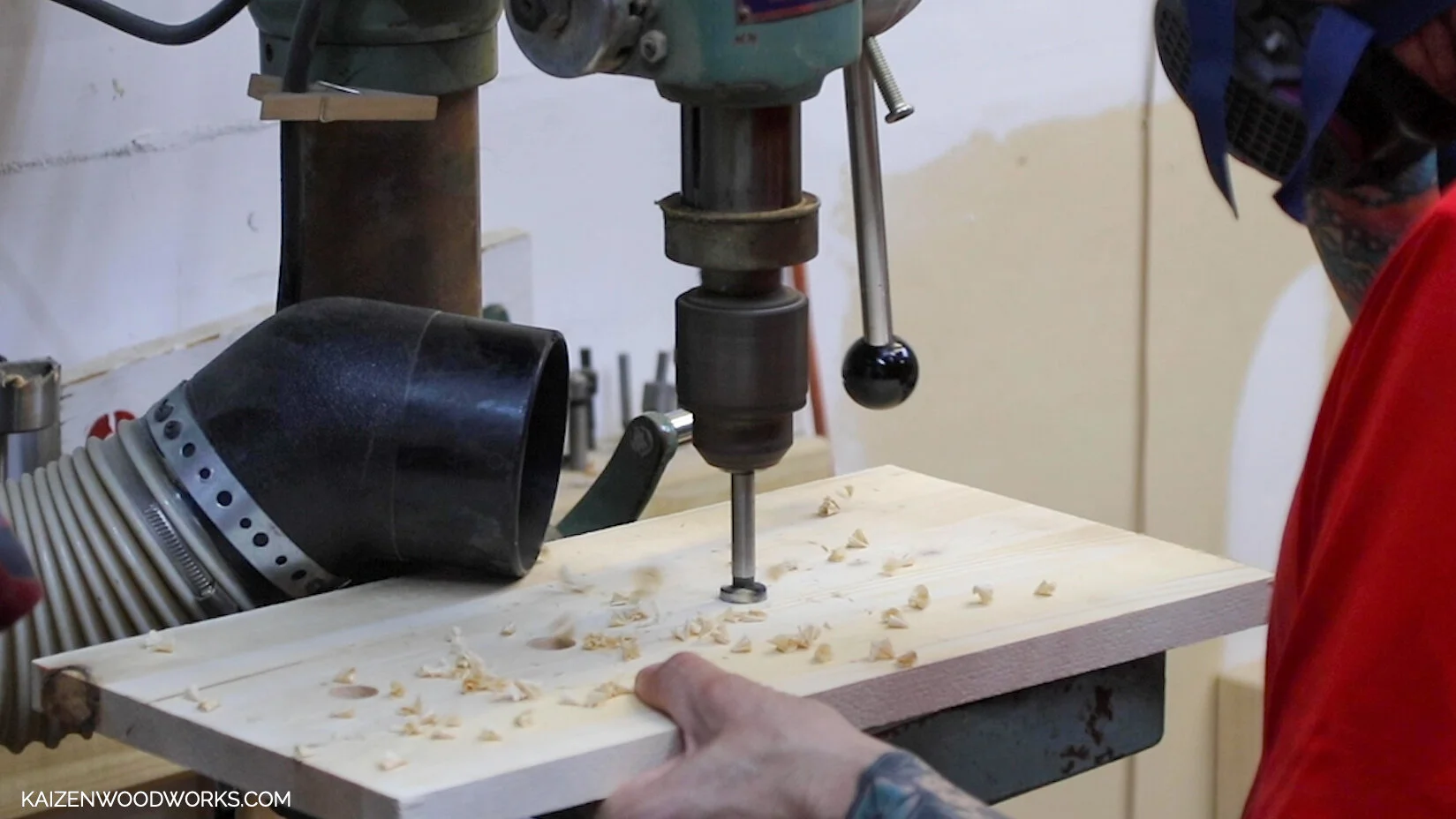

Use the same 3/4” forstner bit to drill four holes into the center of the 17” x 9” piece of pine. All the holes are along the center and equally spaced 4” apart.

router

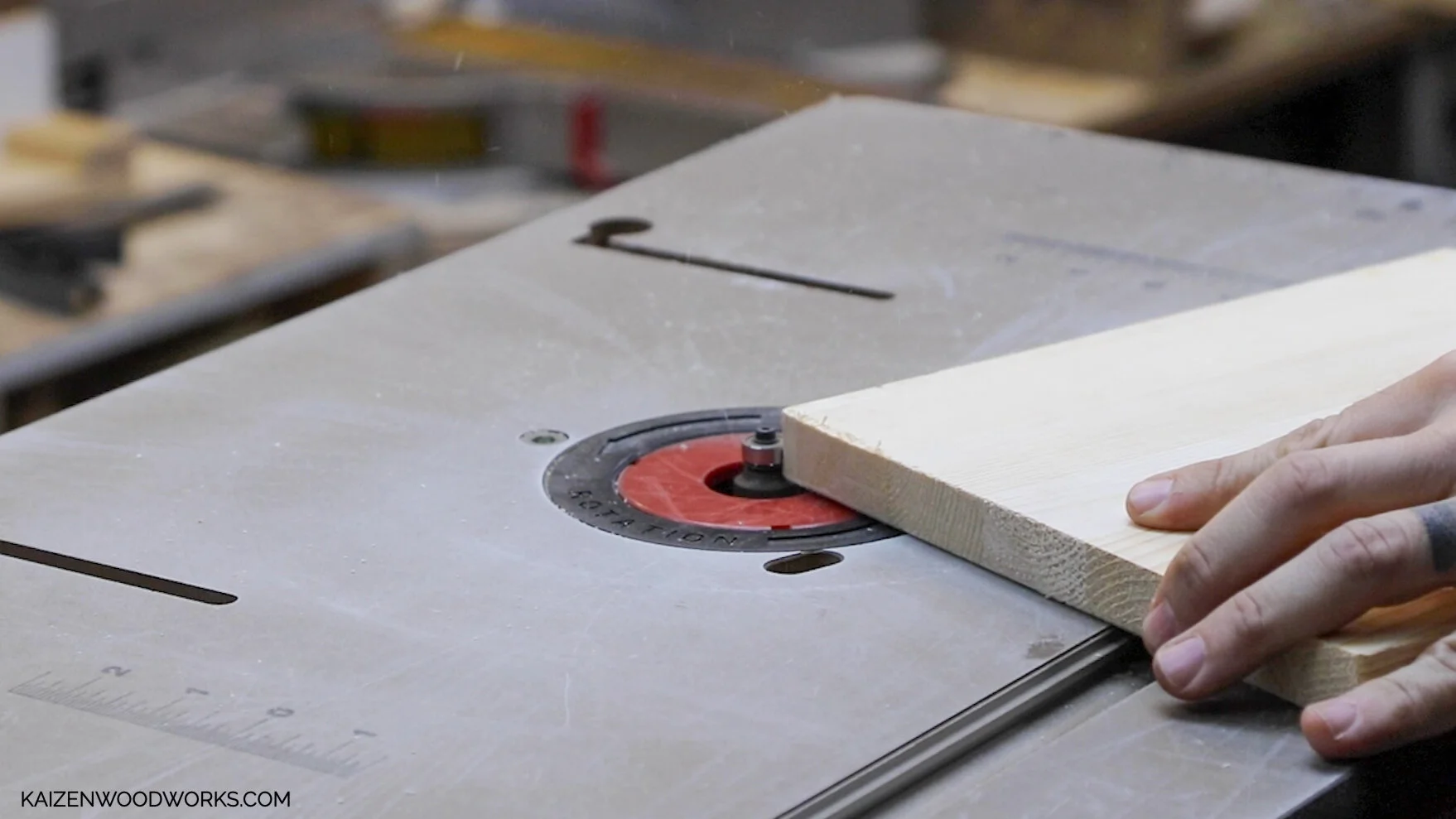

I use my router table and 1/8” round over bit to round the edges of both pine pieces.

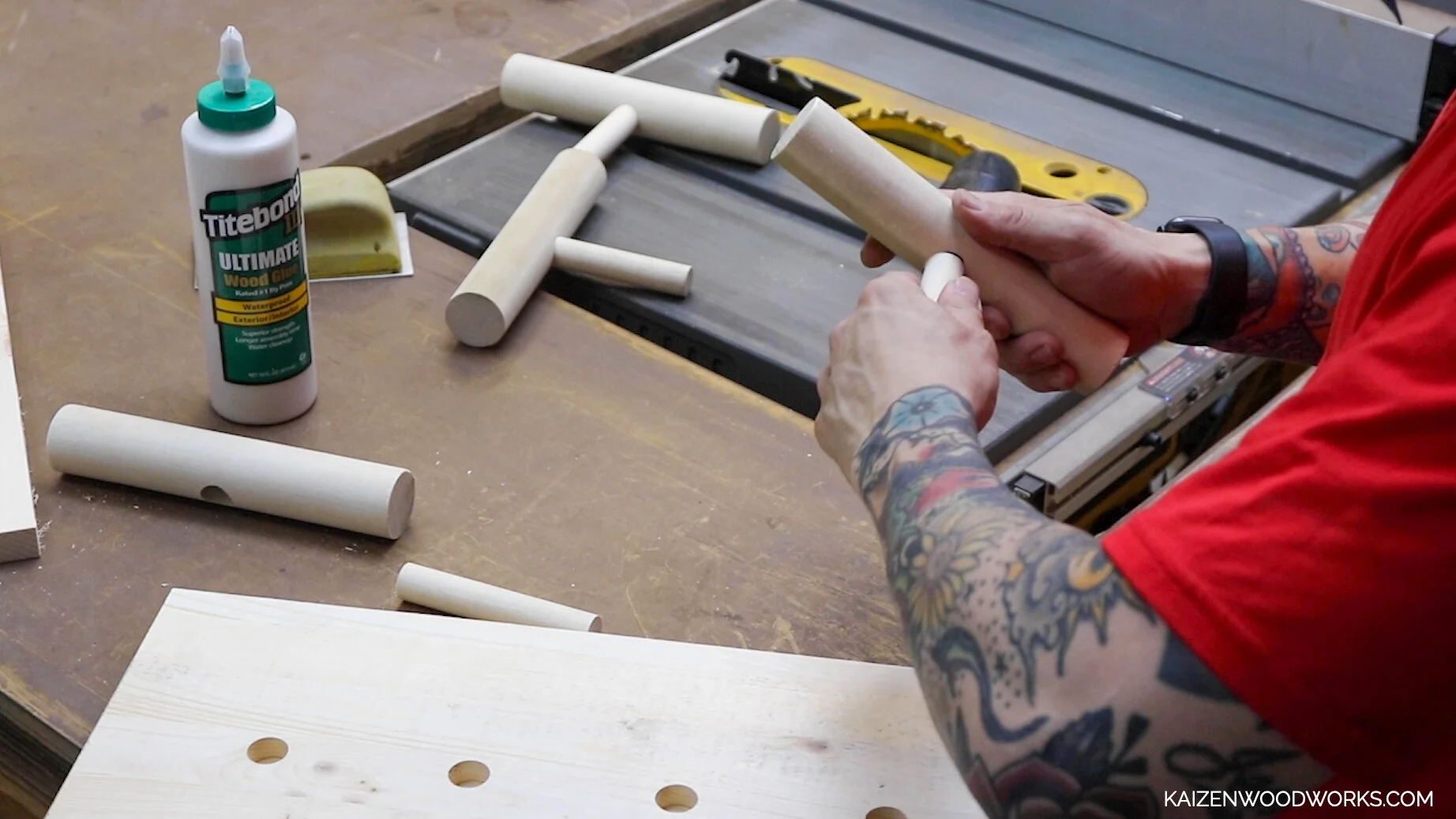

assembly

Add a little bit of wood glue before inserting the 3/4” dowel pieces into the holes in the 1.5” dowel pieces.

nailed it

I add wood glue before attaching the 1.75” dome pieces onto the ends of the 1.5” dowel pieces.

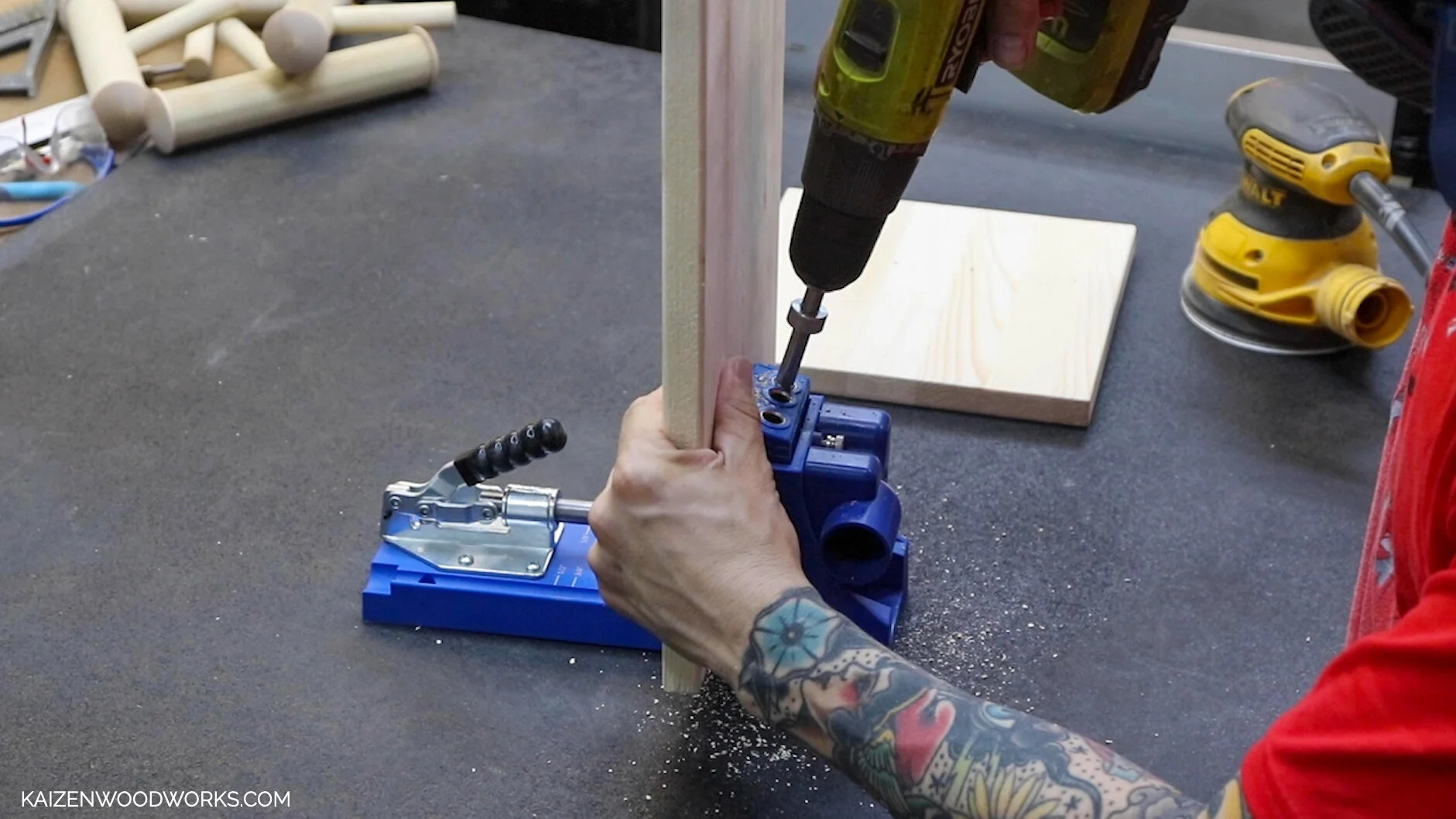

Greg

I use a Kreg pocket jig to add some pocket holes to the backside of this piece.

putting together

When I am ready to start assembling, I use corner clamps to hold the pieces in the right place.

Screen Shot 2021-05-21 at 11.32.56 PM.jpg

I pre-drill four holes on the bottom to help attach the top piece.

pocket screw

I also add two pocket screws in from the top back side.

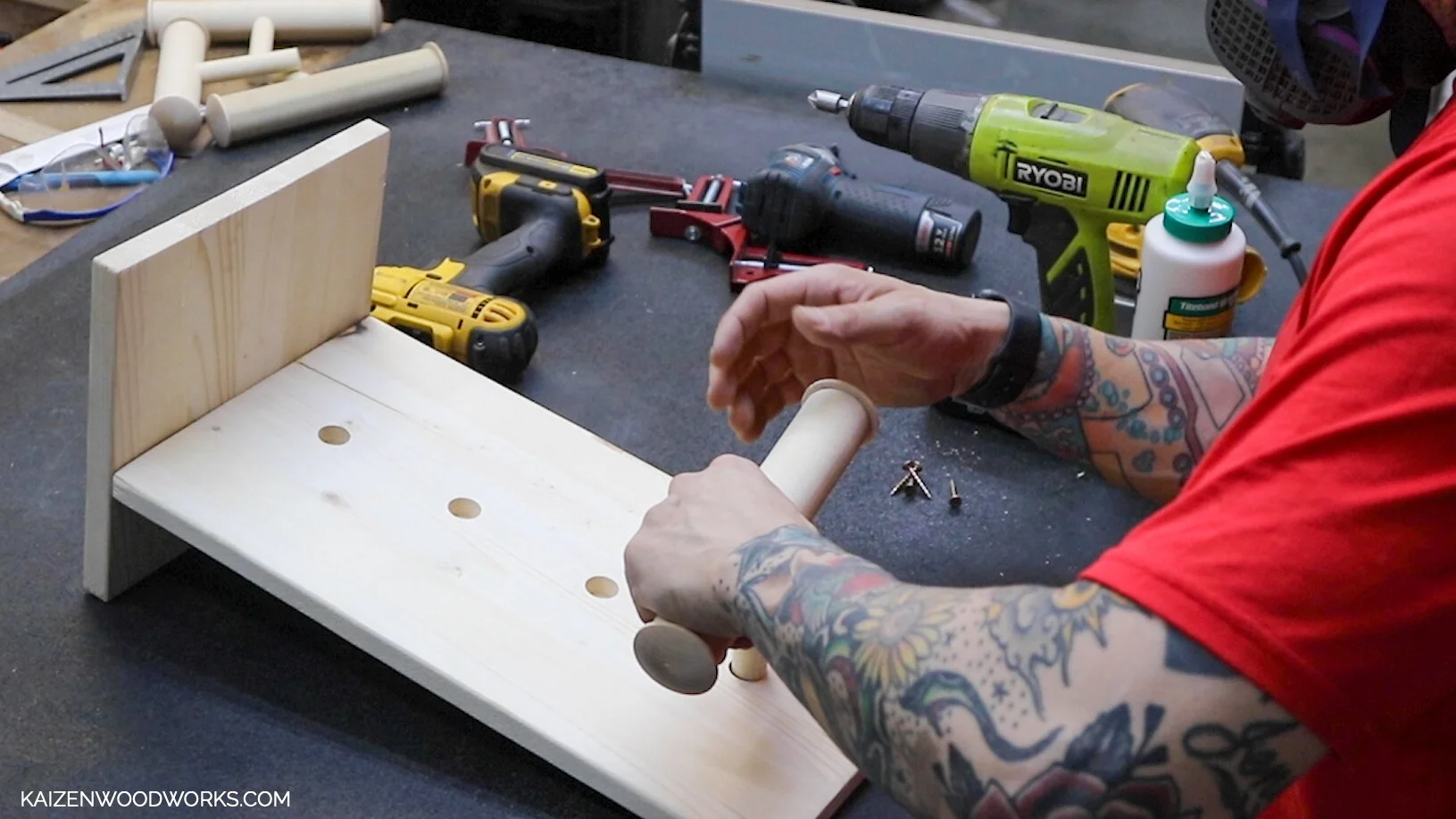

insert dowels

Add wood glue before inserting the pieces into the top piece.

screw it

I secure each one with a screw from the back.

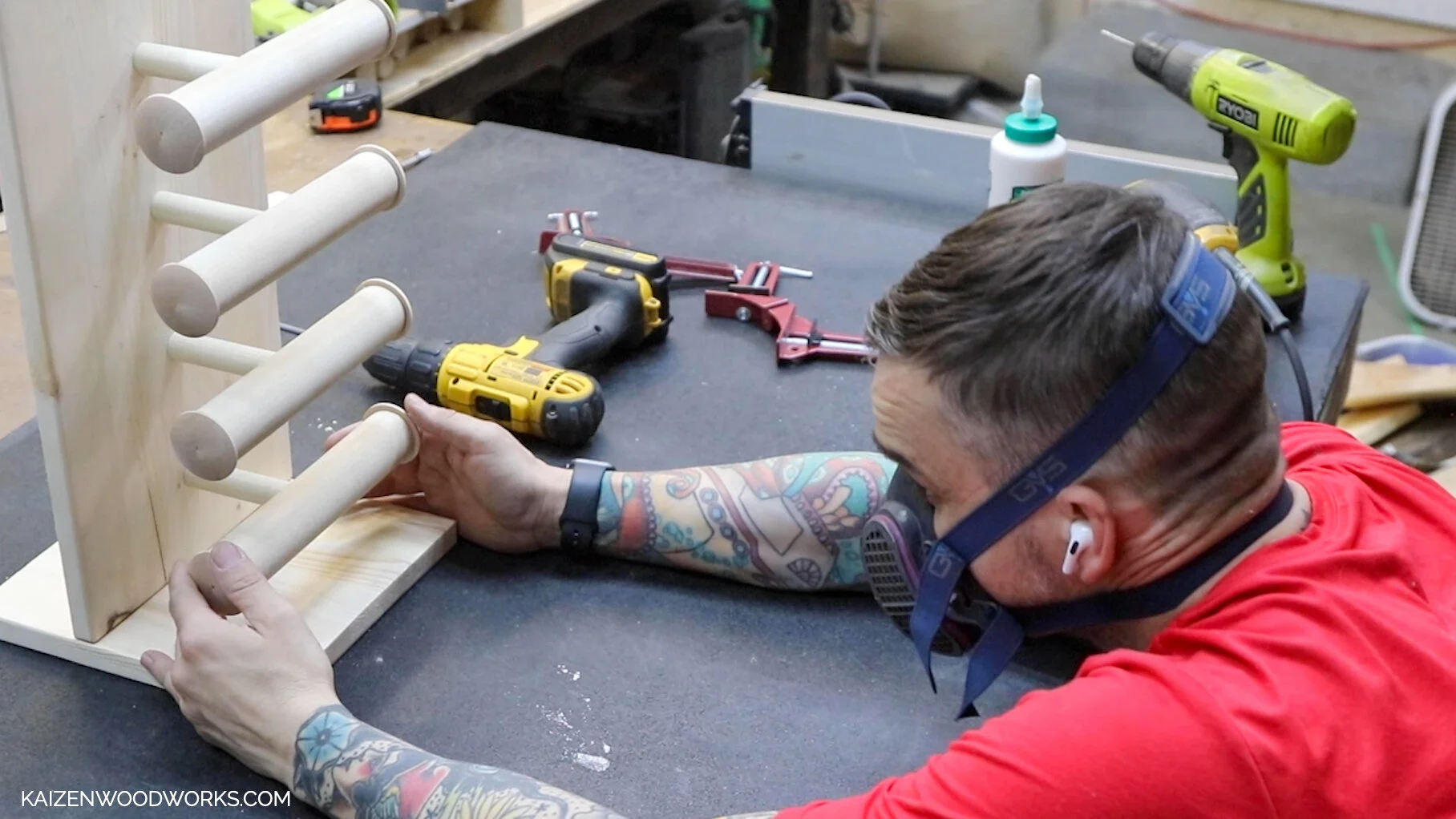

level

Once they’re all in, you can make sure they are level. Make sure to do this before the glue dries.

done

All done and ready for stain or paint.

Monica

I the customer would like customization, I use my Glowforge to create a label for the top.
